Manage libraries, artifacts and deliverables with Nexus Repository Manager OSS

Sandeep Kumar
11 min readJan 7, 2022

--

Introduction

The application development follows some basic pattern and one of the basic pattern is modularity, means a complex and big applications are split into different smaller subsets often termed as ‘module’. These modules arranged and form the final application. This modular design gives provides various benefits to the owner e.g. multiple teams can work independently and parallel to form application, reusability of module or component, easy bug fixing, maintenance, knowledge transfer, resource planning and so on. Additionally, there are a number of developers/contributors and organizations which provides open source reusable components like utilities, libraries, frameworks, platforms, packages and suites which can be used for rapid development and developers need to focus on the business logic only instead of focusing on building utilities, libraries and frameworks.

Once such components are developed, then need to store to a location so that when application use the components or assemble the components, it can be found easily. Therefore, development environment need to have a storage/repository where build components and be placed / published and build tools can easily integrate with it and use it when required.

To store, share and manage build components (also referred as artifacts) there is a proven solution to use artifact repository. There are many repository products are available like JFrog Artifactory, GitHub Package Registry, ProGet, Dist, MyGet, NPM, Bower, PyPI, Yarn, CloudRepo, Nexus Repository Manager etc. and often called Repository Manager.

Anyone of these given products can be used to setup development environment which provides artifact management. Artifact manager provides storage of artifacts along with:

  • Version Management — It provide the effective version management and allows storage, sorting, filtering of artifacts’ version
  • Availability & Retention — It ensures the artifacts availability and serving to each request for the artifact. After certain period/version/based on rule, artifacts need automated clean up.
  • Access Control — It provides user management and access control to manage each repository and artifacts access can be controlled effectively
  • Promotion — Once artifacts are published, it can be promoted to other artifacts based upon need
  • Dependency Management — Some repository manager provides dependency analysis and management
  • Release Stability — In many cases, with release additional metadata is also provided. It ensures that there is no change in distributable binary and metadata
  • Efficient Build — It provides easy integration with build tools to manage artifacts
  • Audit — Provides auditing feature of repository and artifact

Nexus Repository Manager OSS is most popular open source artifacts’ repository manager. Let’s discuss it in details in sub-sequent sections.

About Nexus Repository Manager OSS

Nexus Repository Manager OSS (in short Nexus Repo) is most popular and widely used artifact repository manager which provides below features:

  • It provides centralized repository management where artifacts can be published as ‘Single Source of Truth’ and shared among the projects
  • It provides effective storage and caching mechanism which provides optimized performance and reliability
  • It provides basic features of a repository manager e.g. Access Control, Version Management, Availability & Retention, Dependency Analysis, Audit, Build and Efficiently Publish etc.
  • It supports wide range of distributable e.g. Java/Maven — Jar, NPM, NuGet, Helm, Docker, P2, OBR, APT, GO, R, Conan etc. in form of binaries, assemblies and final outputs.
  • Support of Java based build tools like Ant, Gradle, Maven and Ivy
  • Compatible with tools like Hudson, Jenkins, Puppet, Chef, Docker etc.

Nexus Repo supports mainly three type of repositories for distributable (Maven, Npm, Nu, Helm, Docker etc.):

  • Host — A host repository is the repository where artifacts published and stored the original copy of distributable [basically it is not the mirror image]
  • Proxy — Proxy is used to create the mirror image. To understand it, let’s understand with example, suppose there is a maven central repository which contains various distributable artifacts. A Proxy can be created at organization level for maven central which creates a mirror for maven central by using cache at the first request from developer. On next, request it serves from cache. In this case, even if maven central disconnected, there will not be any impact.
  • Group — It is just a group of repository

Nexus Repo provides a complete web application where it provides various screens which can be utilized for management purpose. It has following menus and options:

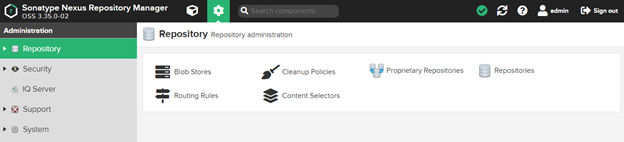

  1. Repository — It provides options to manage repositories, storage, cleanup, proprietary, routing rules and content selectors.

Repositories — Create and manage repositories

Blob Store — Create and manage Blob Storage where artifacts stored and cached

Cleanup Policy — Create and manage cleanup policy

Content Selectors — Create content selector based upon complex filters as where clause in SQL

Proprietary Repositories — Can be marked self-hosted repositories as proprietary repositories.

Routing Rules — Routing can be created and managed to route the request to specific repos based on configured rules

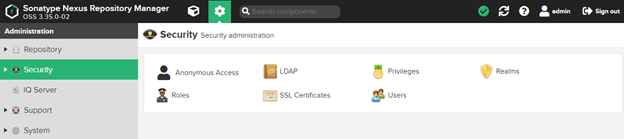

2. Security — It provides roles, user, access, certificates, ldap, privileges and realm management

Privileges — Provide create and manage privilege on different repositories and type of repositories. This will be linked to role to create roles.

Roles — Provides Roles creation and management for Role-based-access-management

User — User and Role mapping

Anonymous Access — Configure anonymous access policy

LDAP — Manage LDAP configuration

Realms — Enable/disable required realms

Certificate — Load and manage certificates

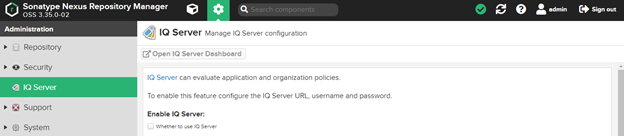

3. IQ Server Configuration — It provides IQ Server configuration (IQ Server is used for policy management)

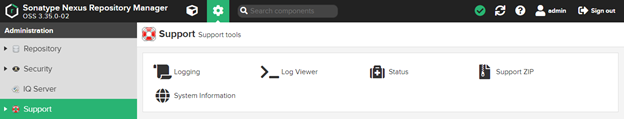

4. Support — It provides configuration for support tools like Logging, Log Viewer, Status, Support Zip and System Information

Logging: Configure Logger and log level

Log Viewer: View Logs

Status: System health check and status

Support Zip: Creates a zip with useful support information for any issue investigation

System Information: About Nexus Repo and its components

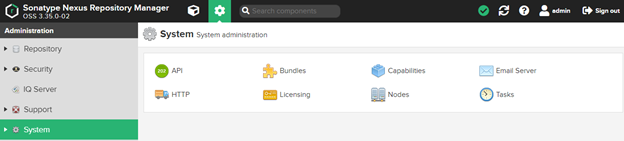

5. System — It provides system administration and configuration like SMTP configuration, Tasks, Nodes, API, HTTP, Bundles etc.

API: Nexus Repo provides REST based APIs which can be used and custom screens can be developed

Bundles: Nexus Repo build of multiple modules known as bundles, this provide status of bundles

Capabilities: Nexus Repo provides additional capabilities e.g. audit, node identity, schedulers etc. it can be created and configured with this menu.

Email Server: Provides way to configure SMTP configuration.

HTTP: Configure HTTP/HTTPS related configuration

License: Option to import PRO license. Optional.

Nodes: View connected nodes, only works when cluster mode enabled.

Tasks: Create and manage tasks performed in Nexus Repo like cleanup task

Setup Nexus Repository Manager OSS

Although, most of the Nexus packages has internally package JRE, it may need to setup on machine. The Nexus Repo internally use Java and Jetty web server so compatible Java must be installed as prerequisite. Therefore, install JDK 8 or later version.

The Nexus Repo binary available for Unix, Windows and OSX platforms. It can be downloaded from URL: https://help.sonatype.com/repomanager3/product-information/download

Below are the steps to install Nexus Repo:

  • Download the binaries as per underlying Operating System and extract it

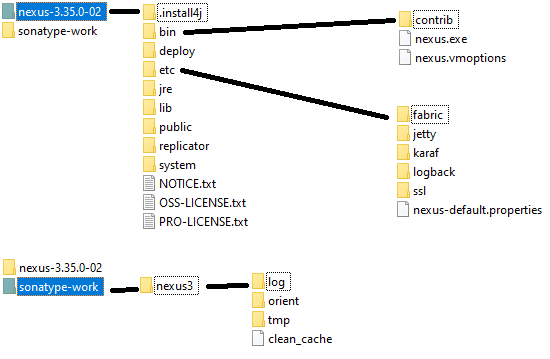

  • Below are basic details about directories
nexus-version -> bin — executable binaries / script
nexus-version -> etc — configuration files

Nexus Repo internally uses:

Integration configuration exists in /etc/fabric

Jetty server and configuration exists in /etc/jetty

Its bundles run on karaf and configuration can be found in /etc/karaf

Logback used for logging and configuration can be found in /etc/logback

To configure SSL, need changes in /etc/ssl

Nexus basic configuration are available in nexus-default.properties. It should not be modified. In case changes needed, create a file named ‘nexus.properties’ and place as /etc/nexus.properties

  • To start Nexus run the below command on binary / script available in /bin directory
# For Linux
./nexus run# For Windows
nexus /run

It will launch application in couple of minute.

Default user will be admin and a file path which contains the default will be given on screen. Use to login first time with that and then reset the password.

Note: If wanted to setup Nexus Repo on local and standalone mode, no need to change any configuration.

Use Cases

Create local hosted repository in Nexus

For different kind of artifacts (e.g. docker, java/maven, node-angular etc.), different repository to be created. Below are the steps to create repository in Nexus Repo:

  • Open server ‘administration and configuration’ (just click gear icon)
  • Click on Repository -> Repositories in Administration Section
  • Click on Create Repository

It will open select recipe. Select docker for docker artifact, maven for maven/jar artifacts, npm for node-angular artifacts. For each recipe, there will be three types hosted, proxy and group. For local repository, select hosted

Provide the repository name and other details and click on create repository.

Note: We can go with all default by putting name only.

It will create repository and list as

  • Click on copy button and copy the link of repository. This link will be used further in project pom.xml file so that when publish it, the artifact will be created in given repository.

Note: Similarly create repository for npm for Node-Angular project publish.

Java/Maven artifact with Nexus Repo

Case 1: Publish artifact in repository

To publish Java/Maven artifact, need to make distribution management entry in pom.xml

<distributionManagement>
  <repository>
    <id>releases2</id>
    <name>maven-releases</name
    <url>http://localhost:8081/repository/maven-releases/</url
    <uniqueVersion>false</uniqueVersion>
  </repository>
</distributionManagement>

Change the URL under the URL tag and give repository URL copied while creating repository in Nexus Repo.

By default, repositories have read-only access therefore when publishing artifacts, it will give unauthorized error. To fix this, there are two ways, change the permission of repository and enable anonymous access.

The other approach is, provide the credential in maven-> conf -> settings.xml. Edit the settings.xml and add a server entry inside the <servers> tag and its id must be matching with distribution management repository id tag in pom.xml. E.g.

<server>
  <!-- The ID must be matching with pom.xml’s  -->
  <id>releases2</id>
  <username>admin</username>
  <password>admin</password>
</server>

Now, go into maven project and perform below commands which compiles, build, publish package to Nexus Repo:

# Clean project
mvn clean# Compile project
mvn compile -Dmaven.test.skip=true# Package project
mvn package -Dmaven.test.skip=true# Install locally project
mvn install -Dmaven.test.skip=true# Publish artifact to Nexus Repo
mvn deploy -Dmaven.test.skip=true

Note: These maven command can be run in single command as well.

Case 2: Target Nexus Repo from Maven for artifacts

Open maven-> conf -> settings.xml. Edit the settings.xml and add mirror entry in <mirros> tag e.g.

<mirror>
   <id>nexus</id>
   <name>mynexusrepo</name>
   <mirrorOf>*</mirrorOf>
   <url>http://localhost:8081/repository/maven-public/</url>
</mirror>

To enable mirror, need to create provide and add profile in active profile list. To create profile add provide tag in <profiles>:

<profile>
  <id>nexus</id>
  <repositories>
    <repository>
     <id>central</id>
     <url>http://central</url>
      <releases>
         <enabled>true</enabled>
         <updatePolicy>always</updatePolicy>
      </releases>
     <snapshots>
       <enabled>true</enabled>
       <updatePolicy>always</updatePolicy>
     </snapshots>
    </repository>
    <repository>
     <id>central1</id>
     <url>https://repo.maven.apache.org/maven2/</url>
     <releases>
      <enabled>true</enabled>
      <updatePolicy>always</updatePolicy>
     </releases>
     <snapshots>
      <enabled>true</enabled>
      <updatePolicy>always</updatePolicy>
     </snapshots>
    </repository>
  </repositories>
  <pluginRepositories>
   <pluginRepository>
    <id>central</id>
    <url>http://central</url>
    <releases>
     <enabled>true</enabled>
     <updatePolicy>always</updatePolicy>
    </releases>
    <snapshots>
     <enabled>true</enabled>
     <updatePolicy>always</updatePolicy>
    </snapshots>
  </pluginRepository>
  <pluginRepository>
   <id>central1</id>
   <url>https://repo.maven.apache.org/maven2/</url>
   <releases>
    <enabled>true</enabled>
    <updatePolicy>always</updatePolicy>
   </releases>
   <snapshots>
    <enabled>true</enabled>
    <updatePolicy>always</updatePolicy>
   </snapshots>
  </pluginRepository>
 </pluginRepositories>
</profile><profile>
<id>mavencentral</id>
<repositories>
  <repository>
    <id>central</id>
    <url>https://repo.maven.apache.org/maven2/</url>
    <releases>
       <enabled>true</enabled>
       <updatePolicy>always</updatePolicy>
    </releases>
    <snapshots>
      <enabled>true</enabled>
      <updatePolicy>always</updatePolicy>
    </snapshots>
  </repository>
 </repositories>
<pluginRepositories>
  <pluginRepository>
    <id>central</id>
    <url>https://repo.maven.apache.org/maven2/</url>
    <releases>
       <enabled>true</enabled>
       <updatePolicy>always</updatePolicy>
    </releases>
    <snapshots>
       <enabled>true</enabled>
       <updatePolicy>always</updatePolicy>
    </snapshots>
  </pluginRepository>
 </pluginRepositories>
</profile>

Now, make entry in <activeProfiles> tag to mark these profiles active:

<activeProfile>nexus</activeProfile>
<activeProfile>mavencentral</activeProfile>

Note: This configuration will work only when maven proxy repository configured into the Nexus Repo and anonymous access is enabled. In case anonymous access not enabled, then need to create a server entry provide username and password for the mirror entry with same id.

Node-Angular artifact with Nexus Repo

Case 1: Publish artifacts to Nexus Repo

To publish Npm artifact to Nexus Repo, first need to create hosted type Npm repository in Nexus Repo and copy URL.

Now change Npm project’s package.json and make it private:

"private": false,

Add user in Npm by using below command:

npm adduser --registry http://localhost:8081/repository/mynpmrepo/ --always-auth

It will ask for username and password on console. Provide username and password to complete add user process in Npm.

Build the project and then run below command to publish artifact to Nexus Repo:

npm publish --registry http://localhost:8081/repository/mynpmrepo/

Case 2: Target Nexus Repo from Npm

To set the Nexus Repo mirrors in Npm. There are two ways: by using command, by creating or editing .npmrc file in user local directory

npm config set proxy http://admin:admin@localhost:8081/repository/mynpmproxyrepo/

Note: Here admin:admin is username and password

If using unsecure registry (with HTTP only not HTTPS), need to enable insecure registry by below command:

npm config set strict-ssl=false

If want to change manually with .npmrc file then create a file in user directory. If .npmprc file is already available then edit it and provide details like:

proxy=http://admin:admin@localhost:8081/repository/mynpmproxyrepo/
https-proxy=http://admin:admin@localhost:8081/repository/mynpmproxyrepo/ strict-ssl=false
registry=http://registry.npmjs.org/

Now, run Npm commands, it will use configured proxy registry.

Note: Before configuring registry proxy in Npm, first create Proxy type Npm recipe repository in Nexus Repo. Additionally, anonymous access provided on repository. No need to add username and password.

Here, we have given use case with Java/Maven and Npm-Angular. If need more use case with other supported programming languages and build tool. Please let us know, we will add.

Conclusion

Repository Manager is essential tool for the development environments to enable a protected and secure development environment where all public/central repositories must be access via mirroring from repository manager.

The deliverable must also be published so it will be available to other teams who are working on project and use the deliverable as reusable module. A perfect version control, access management and integration with build tools are also required.

Nexus Repository Manger OSS (also referred as Nexus Repo) is most popular and widely used for repository management in organizations. It is open source and free for uses. However, PRO version is also available from Sonatype which provides additional features on top of Nexus Repo.
